Linear

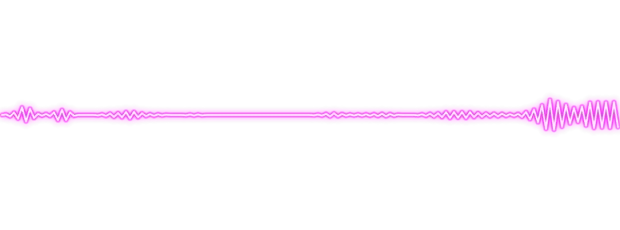

The Linear Visualiser represents the Set of Bars, Particles and Particle Connectors that can be drawn on a straight line.

Primitives

A Bar or a Particle is referred to as a Primitive.

A Primitive resides in a Fragment (this is different from the Fragment in a Vertex / Fragment Shader), and has properties that define its size and appearance.

Fragments

A Fragment is the division of the total Window View into different 'Columns'. This serves as the housing space for the Primitives.

Each Fragment has a width that must be a constant throughout the current Frame of the Shader Program, and is represented by fragmentWidth.

If a Primitive's width exceeds that of the Fragment, then the Primitive appears as if it's been clipped or cut-off. This is intended, as no two Primitives from different Fragments can overlap.

This is because Linear Shader's logic divides the screen in different sections (Fragments) and treats them independently.

Working

In the Common GLSL Configuration File, various variables and functions have been laid out that are essential for the Shader to Compile.

The variables primarily define:

The width of the Fragment,
The vertical directions of the Primitives (Up, Down, or both), and
Type(s) of Primitive to display (Bar, Particle, or both)

The functions serve as concrete stages in the processing of the Shader, and hence allow the specification of different values that affect the Primitives' Visuals.

Fragment Represents the underlying Fragment that can show one Particle and one Bar. None of the Attributes are meant to be modified.

Property	Data Type	Description	Example
n	float	Number of the current `Fragment` . Ranges from 0 to `lastN` .	-
lastN	float	Number of the last possible `Fragment` .	-
span	float	Span of the `Fragment` . Lies in `[-fragmentWidth/2.,fragmentWidth/2.]`	-
coords	vec2	Absolute Coordinates in the `Shader` , corresponding to `(x,y)` . Lies in `[vec2(0,0), vec2(resolution.xy)]`	-
centerCoords	vec2	Absolute Coordinates of the `Fragment's Center` .	-

Audio Settings Represents the various Audio-transformation properties for each side.

Property	Data Type	Description	Example
reverseLeft	int	Specifies the reversal of the left audio channel. Either 0 or 1.	0
reverseRight	int	Specifies the reversal of the right audio channel. Either 0 or 1.	0
mode	int	0 for mirrored audio output, where the left half corresponds to the left audio channel and the right half corresponds to the right audio channel. 1 for linear audio output, where the top half represents the right audio channel and the bottom half represents the left audio channel.	1
combineChannels	int	Specifies whether the audio values should be combined from the left and right channels. Either 0 or 1.	1

Audio Represents the captured Audio Data, and its multiplier.

Property	Data Type	Description	Example
multiplier	float	Amplification for the audio value	100
current	vec2	Stores the `Current Fragment's` left audio channel data in x, and the right audio channel data in y.	-
prev	vec2	Stores the `Previous Fragment's` left audio channel data in x, and the right audio channel data in y.	-
next	vec2	Stores the `Next Fragment's` left audio channel data in x, and the right audio channel data in y.	-

Cap Represents a Cap that can 'bounce' over a Primitive (Bar or Particle). Requires 1 Image Texture to be enabled when visualiserMode is either 0 or 1, and requires 2 whenvisualiserMode is 2.

Property	Data Type	Description	Example
enable	bool	Specifies whether the `Caps` should be enabled.	false
rate	float	The Downwards fall rate for the `Cap` . Constant.	0.03
elasticity	float	Bounciness of the `Cap` when encountering the Edge of the `Parent Primitive` .	0.03
elasticityMinThreshold	float	Minimum 'bounciness' value that is used to immediately put the `Cap` at rest on the `Parent Primitive's` Edge.	0.6
launchVelocity	float	Upwards Velocity of the `Cap` when the `parent Primitive` moves upwards.	0.04
size	vec2	Size of the `Cap` .	vec2(3, 5)
acceleration	float	Acceleration for the downwards fall of the `Cap` .	0.5
launchFlingMultiplier	float	Upwards Thrust of the `Cap` influenced by the current Audio value in the `Fragment` , when the `Parent Primitive` moves upwards.	0.5
dragFactor	float	Drag factor. Higher values yield a constant downwards terminal velocity for the `Cap` .	0.01
offset	vec2	Offset for the `Cap` . Will be added to the coordinates of the `Cap` .	vec2(0,12)
audio	vec2	The audio value that will be used for the `Cap` . `x` stores the left channel for the current `Fragment` and `y` stores the right channel. Each channel is used according to the channel of the `Primitive` .	-
softness	vec3	Softness of the `Cap` . `x, y and z` respectively represent softness values for the `top` , `left & right` , and `bottom` edges. Higher softness value yields a smoother and blurred edge.	vec3(1, 1.5, 1)
color	vec4	Color of the `Cap` .	vec4(1, 0, 0, 0)

Connector Half Represents the left and right sides of a Connector.

Property	Data Type	Description	Example
enable	int	Specifies whether the `Connector Half` should be enabled.	0
height	float	Height of the `Connector Half` .	3
borderSize	float	BorderSize of the `Connector Half` .	2
innerSoftness	float	Inner Softness of the `Connector Half` . Higher softness value yields a smoother and blurred edge.	0.5
outerSoftness	float	Outer Softness of the `Connector Half` . Higher softness value yields a smoother and blurred edge.	0.5
color	vec4	Inner Color of the `Connector Half` .	vec4(1.0, 1.0, 0.0, 1.0)
borderColor	vec4	Outer Color of the `Connector Half` .	vec4(1.0, 1.0, 1.0, 1.0)

Connector Represents the combination of left and right Connectors.

Property	Data Type	Description	Example
left	ConnectorHalf	Left `Connector Half`	-
right	ConnectorHalf	Right `Connector Half`	-
jointMode	int	Joint Mode	1
jointColorMode	int	Joint Color Mode	0
leftCenter	vec2	Stores the coordinates of the `Particle` in the `Left Fragment` .	-
currentCenter	vec2	Stores the coordinates of the `Particle` in the `Current Fragment` .	-
rightCenter	vec2	Stores the coordinates of the `Particle` in the `Right Fragment` .	-

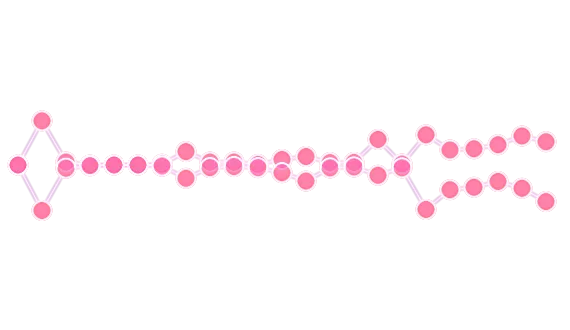

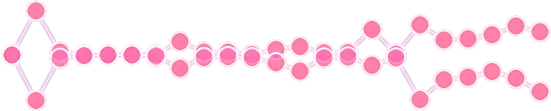

Particle Represents a Particle.

Property	Data Type	Description	Example
fragment	Fragment	Stores the current `Fragment` .	-
audio	Audio	Stores captured Audio Data.	-
cap	Cap	Stores the `Cap` for the `Particle` .	-
connector	Connector	Stores `Connector` Settings.	-
reverseBottomOffset	int	Specifies whether the bottom offset value provided should be inverted for the `Bottom Particles` .	1
radius	float	Specifies the radius of the `Particle` .	3
borderSize	float	Specifies the borderSize of the `Particle` .	2
interChannelDistance	float	Specifies the vertical distance between the `Top and Bottom Particles`	12
innerSoftness	float	Specifies the inner Softness of the `Particle` . Higher softness value yields a smoother and blurred edge.	0.5
outerSoftness	float	Specifies the inner Softness of the `Particle` . Higher softness value yields a smoother and blurred edge.	0.5
offset	vec2	Specifies the offset of the `Particle` . Added to the coordinates of the `Particle` . Use `setOffsets()` to properly show connectors if enabled.	vec2(1,12)
color	vec4	Inner Color of the `Particle` .	vec4(1, 0, 0, 1)
borderColor	vec4	Outer Color of the `Particle` .	vec4(1, 1, 1, 1)

Bar Represents a Bar.

Property	Data Type	Description	Example
fragment	Fragment	Stores the current `Fragment` .	-
audio	Audio	Stores captured Audio Data.	-
upCap	Cap	Stores the `Top Cap` for the `Bar` .	-
downCap	Cap	Stores the `Bottom Cap for the Bar` .	-
type	int	Specifies the type of `Bars` to draw: 0 for `Rectangular` , and 1 for `Rounded` . Only `Rectangular Bars` can be merged.	1
mergeLeftBar	int	Specifies merging of the `Bar` on the Left. Either 0 or 1.	1
mergeRightBar	int	Specifies merging of the `Bar` on the Right. Either 0 or 1.	1
clampLeftMergeBorder	int	1 to specify left Border to be always present on the very first `Bar` , when `mergeLeftBar` is 1.	1
clampRightMergeBorder	int	1 to specify right Border to be always present on the very last `Bar` , when `mergeRightBar` is 1.	1
offset	vec2	Specifies the offset of the `Bar` . Added to `Bar's` coordinates.	vec2(0,-12)
size	vec3	Specifies the Size of the `Bar` . `x, y and z` represent the minimum upwards height, horizontal size, and the minimum downwards height.	vec3(3, 12, 3)
borderSize	vec3	Specifies the BorderSize of the `Bar` . `x, y and z` represent the top, left & right, down side Borders.	vec3(1, 2, 1)
innerSoftness	vec3	Softness of the Inner Edge of the `Bar` . `x, y and z` respectively represent softness values for the `top` , `left & right` , and `bottom` edges. Higher softness value yields a smoother and blurred edge.	vec3(0.5)
outerSoftness	vec3	Softness of the Outer Edge of the `Bar` . `x, y and z` respectively represent softness values for the `top` , `left & right` , and `bottom` edges. Higher softness value yields a smoother and blurred edge.	vec3(0.5)
color	vec4	Specifies the Inner Color of the `Bar` .	vec4(0,1,1,1)
borderColor	vec4	Specifies the Outer Color of the `Bar` .	vec4(0.0, 1.0, 0.5, 1.0)
bgColor	vec4	Specifies the background Color over which `Bars` are displayed.	vec4(0.5)
